Multi-channel CI Receiver

CIR-585 Multi-Channel CI Receiver is a Granwinning’s new design which integrates demodulation and de-scrambler in one case to convert RF signals into TS output after re-mux.

It is a 1-U case which supports Max 2 demodulation modules. The 2 CAMs/CIs accompanied in each demodulation module can decrypt programs inputting from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

BISS function is also embedded to descramble programs from any input.

To meet customers’ various requirements, Each demodulation module of GW-DH3585 is also equipped with 1 ASI in and 16 IP inputs for re-mux, and output 1 MPTS and 16 SPTS with 1 ASI out port and 1 data port.

Product Description

Key Features

* 2 or 4 Tuner (DVB-C/T/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional) inputs for each demodulation module

* 1 ASI & 16 IP (UDP/RTP) inputs for re-mux

* One CAM can decrypt multiple programs from Tuners/ASI/IP

* Support BISS descrambling

* IP (1 MPTS & 16 SPTS) over UDP and RTP output; ASI out for MPTS

* Support maximum 256 PID mapping

* Remote control and Firmware, web NMS management

* Updates via web

* Best quality and breakthrough price

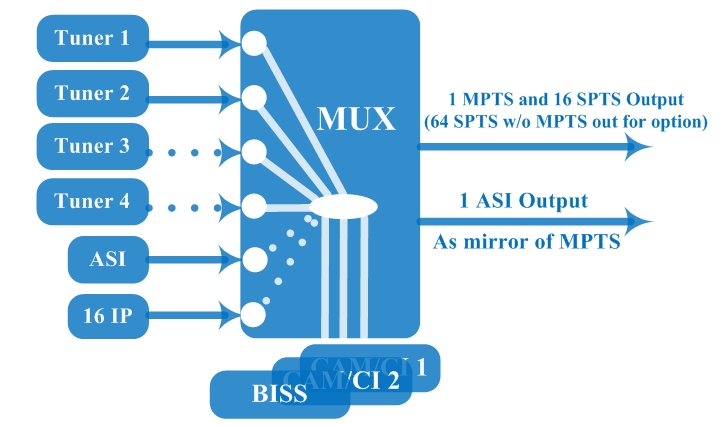

Principle Chart

Technical Specifications

Input (per demodulation module)	2 or 4* tuner inputs (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X or ATSC optional), F type 1ASI input for re-mux, BNC interface 16IP input for re-mux (UDP/RTP)
Tuner Section	Multi-mode tuners switchable (New)	DVB-C	Input Frequency			60 ~890 MHz
			Standard			J.83A, J.83C	J.83B
			Constellation			16/32/64/128/256 QAM	64/256 QAM
		DVB-T/T2	Input Frequency			60 ~890 MHz
			Bandwidth			6/7/8 M
		ISDB-T	Input Frequency			60 ~890 MHz
	Satellite	DVB-S	Input Frequency			950~2150MHz
			Symbol rate			0.5~45Msps
			Signal Strength			- 65- -25dBm
			FEC			1/2, 2/3, 3/4, 5/6, 7/8
			Constellation			QPSK
			Max input bitrate			≤170 Mbps
		DVB-S2	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps;
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
			Constellation			QPSK, 8PSK, 16APSK, 32APSK
			Max input bitrate			≤170 Mbps
		DVB-S2X	Input Frequency			950~2150MHz
			Symbol rate			QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps
			FEC			QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
			Constellation			QPSK, 8PSK, 8APSK, 16APSK, 32APSK
			Max input bitrate			≤170 Mbps
	ATSC	ATSC	Input Frequency			54-858MHz
			Bandwidth			6 M
			Constellation			8 VSB
Descrambling		CAM/CI Quantity			2 (per demodulation module)
		BISS Mode			Mode 1, Mode E
Output (per demodulation module)		1MPTS & 16SPTS over UDP, RTP. 1000 Base-T Ethernet interface (unicast / multicast)
		1×ASI mirrored out of MPTS, BNC interface
System		Remote management		Web-server Management
		Language		English
		Upgrade		web management
Miscellaneous		Dimension		48230044mm (W×L×H)
		Environment		0~45℃(work)；-20~80℃（Storage）
		Power requirements		100~240VAC, 50/60Hz
		Power consumption		15W
