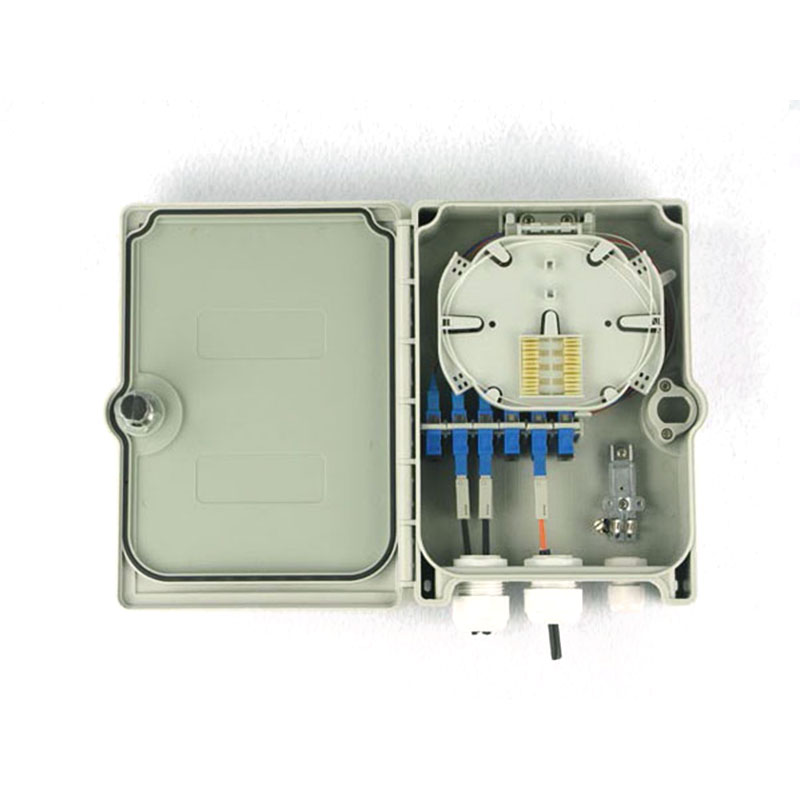

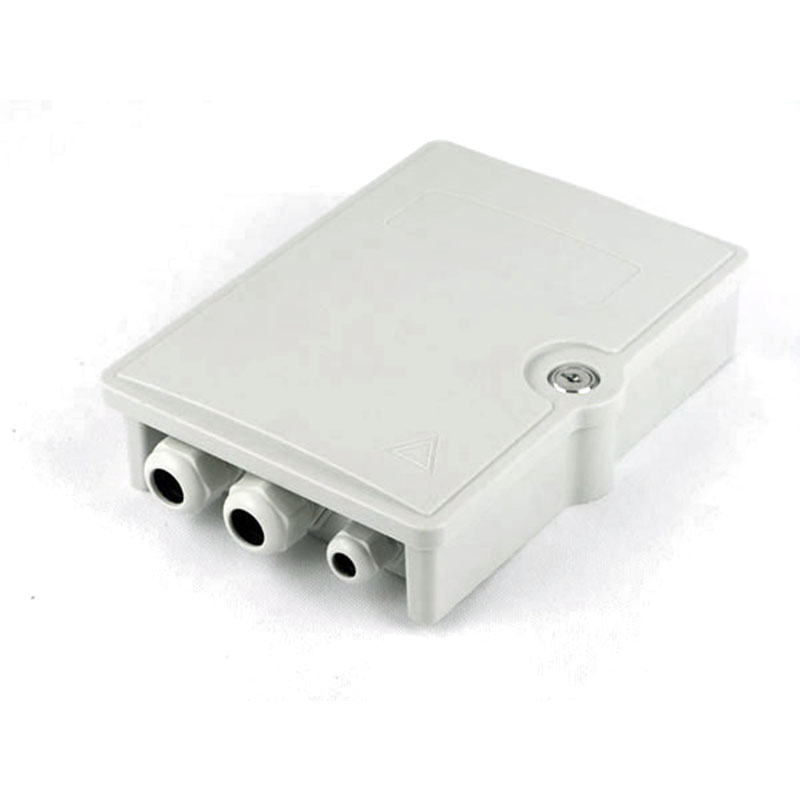

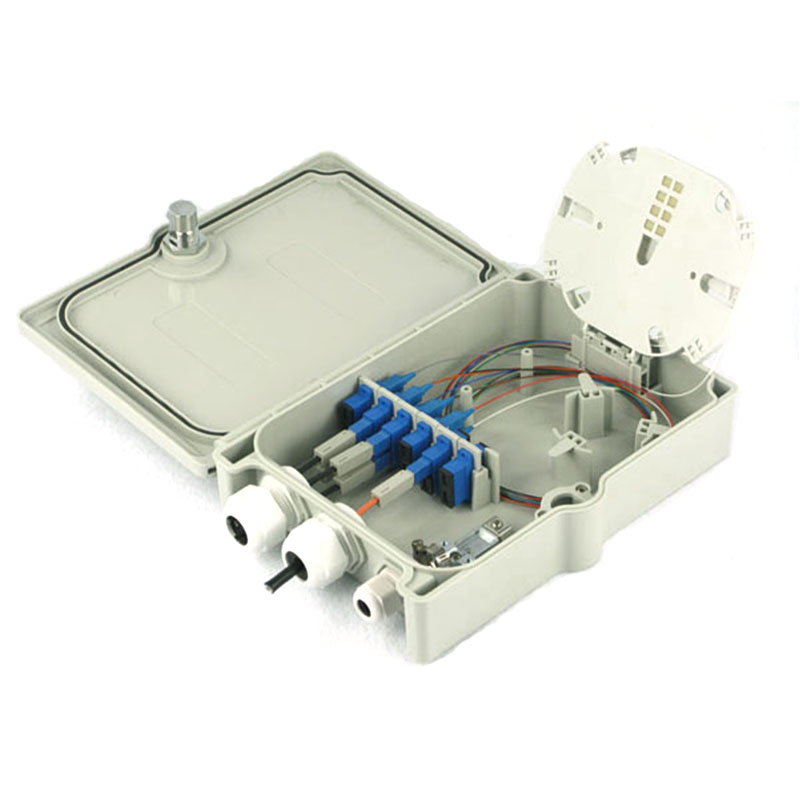

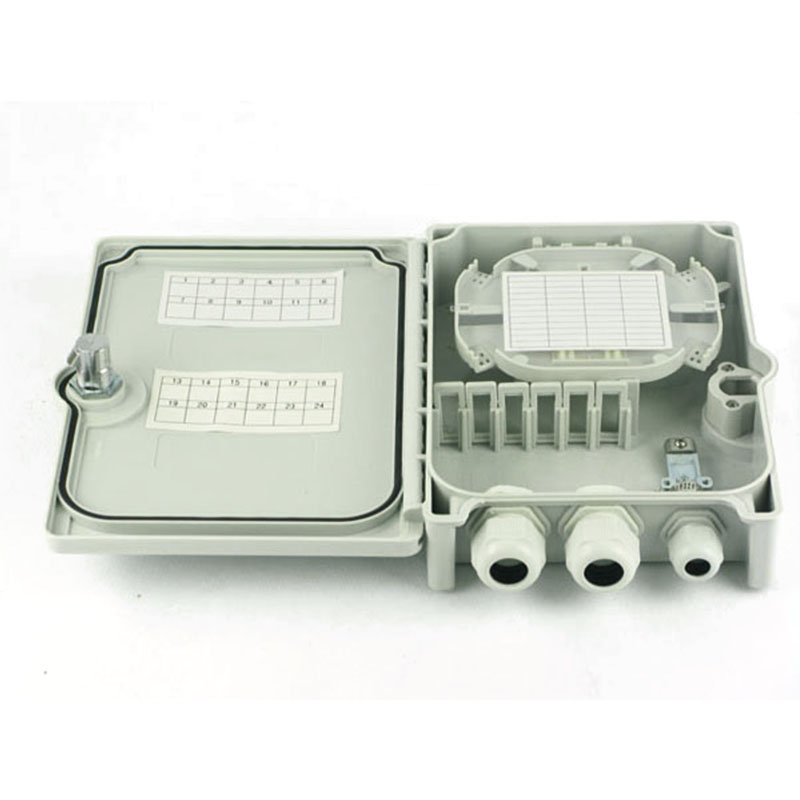

12 Core Terminal Box
GWTB-12A fiber optic terminal box provides three types for your selection. It belongs to FFTH product, which is made of polymer plastic. Long service life.
Feature:
1． φ12 cable termination and “8” figure orφ3 soft cable.
2． The box is in favor of 1 pieces of 1core splice tray. Max capacity is 24F. 8F, 12F and 24F is available.
3． Applicable for 1:8 SC or 1:16 LC micro type splitter, also can be installed with 6 pieces of SC duplex or LC four cores adapters. LC could be mounted up to 24F cables, SC could be mounted up to 12F cables.
4． It adopts the way of wall mount installation, can be opened repeatedly.
5． Flip structure, anti-thief by key. Small size with full function, easy to use.
6． Special for FTTH indoor termination, obtains many new practical patents.
Specification：
| Model NO. | GWTB-12A |
| Size(mm) | 258X186X61 |
| Gross Weight(kgs) | 0.8-1.1kgs per unit |
| NO of Cable Entry | the diameter of cables would be less than 12mm |
| NO of Drop Cable | “8” figure or with diameter of 3mm |
| Adapter | 6 |
| Splitter | 1:8 SC or 1:16 LC micro type splitter |
| Splice Tray | 1 |
| Max Capacity | 12F |
| IP Level | IP65 |
Installation Method | Standard: Wall-mounting |
| Optional: Pole-mounting |
