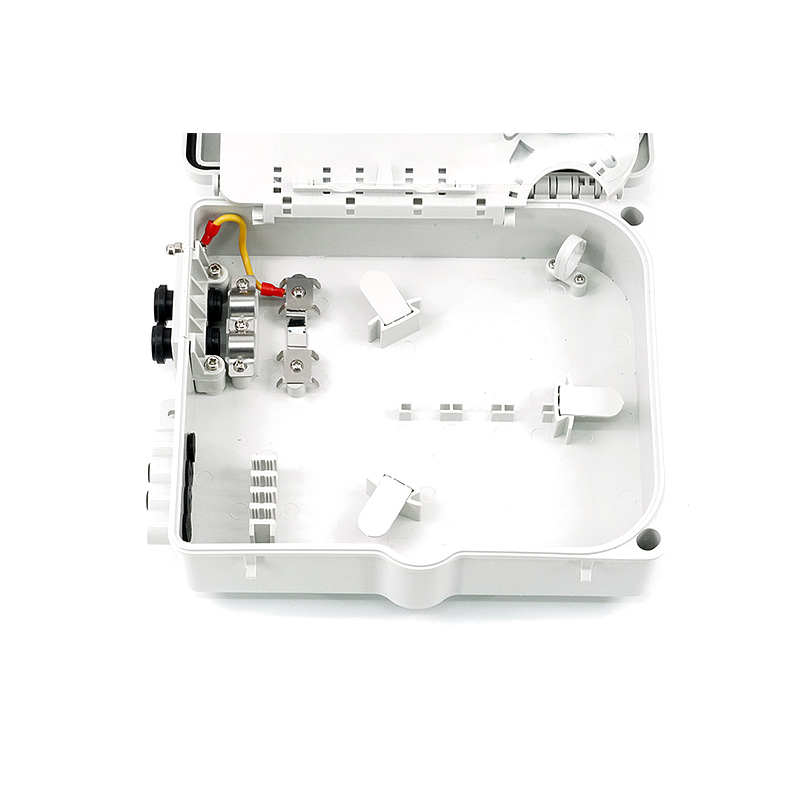

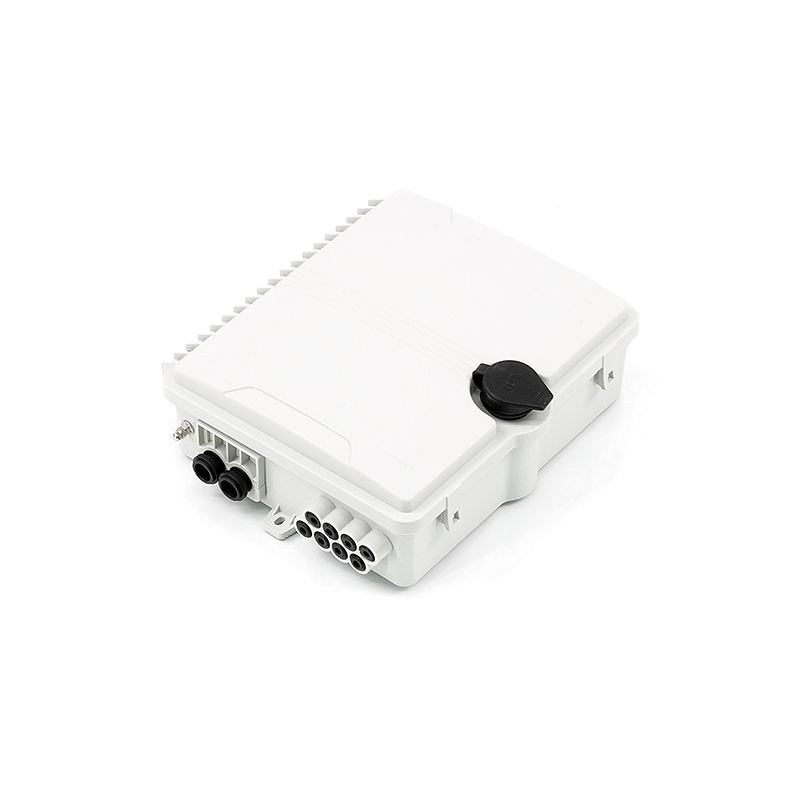

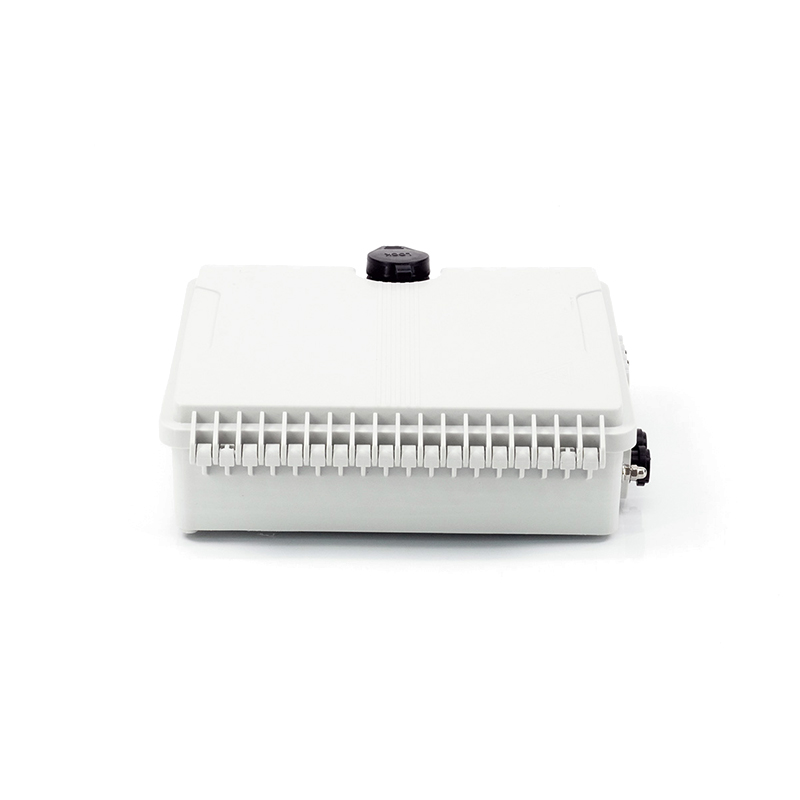

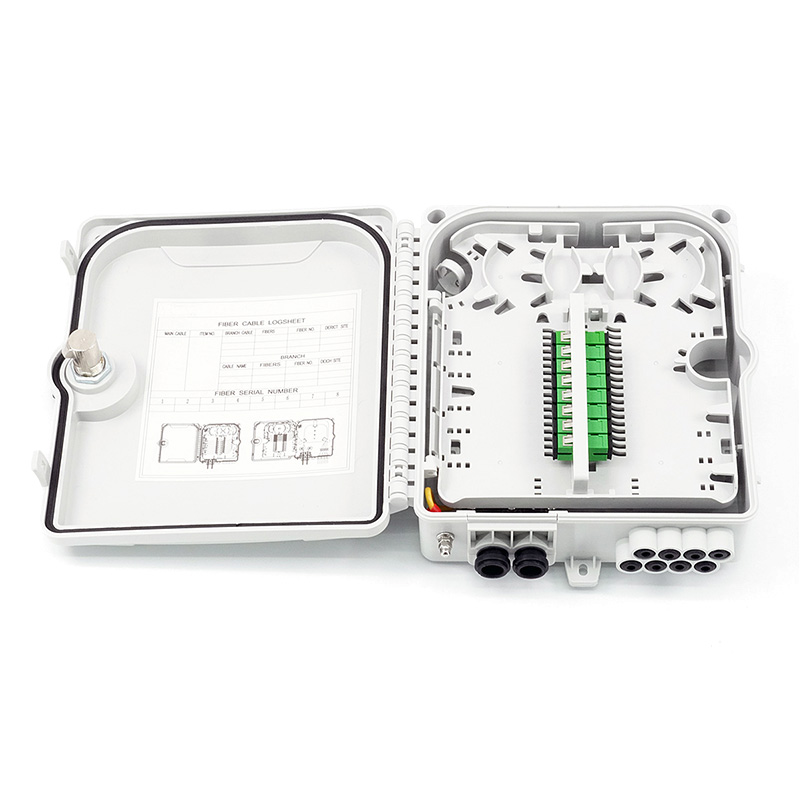

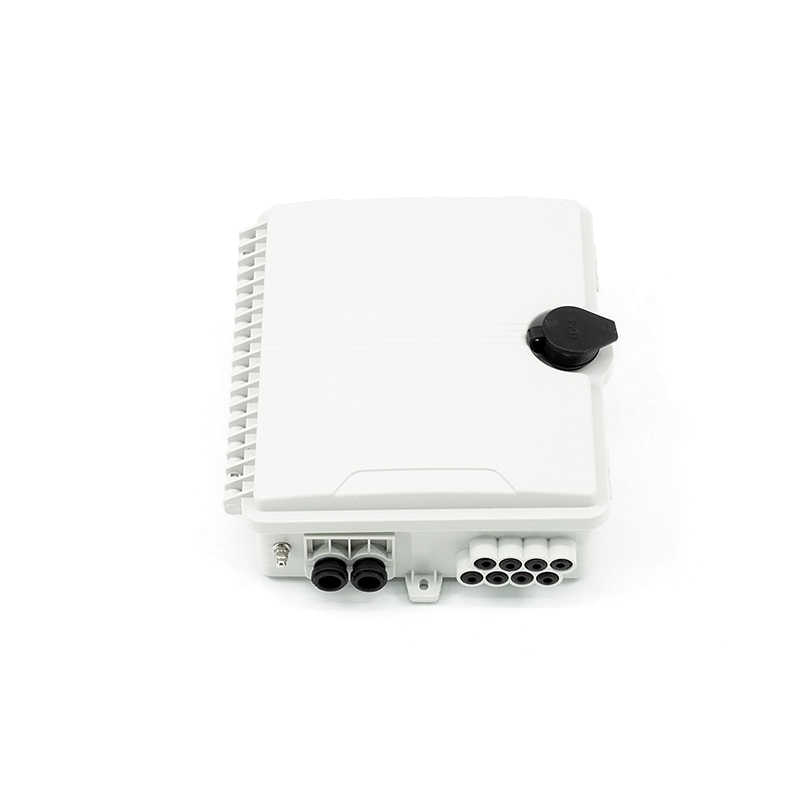

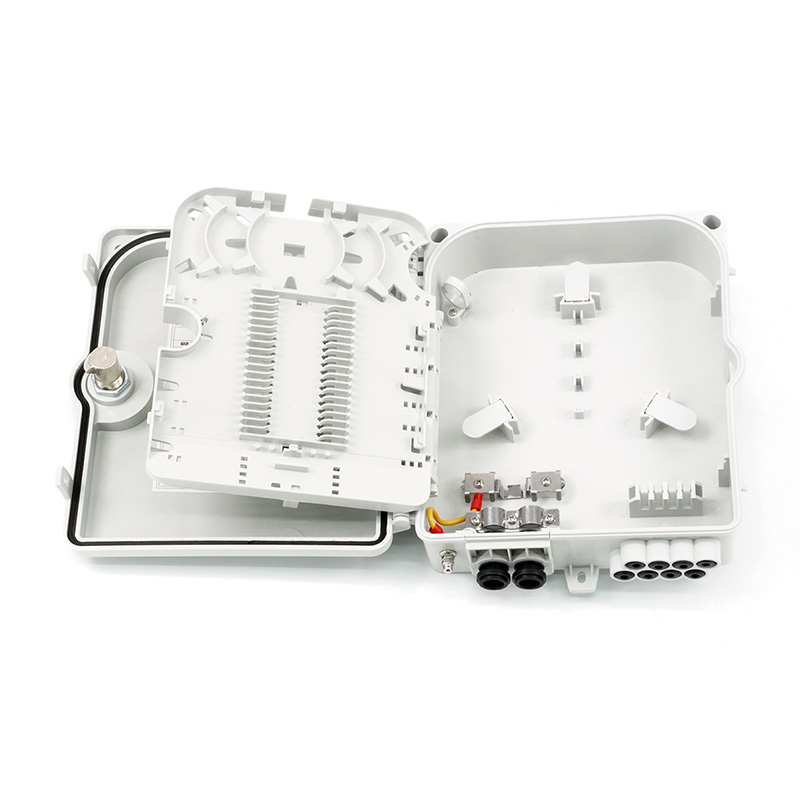

8 Core Fiber Distribution Box
GWDB-8-01 of fiber optic distribution box is applicable to fiber connection and distribution in fiber distribution network. It’s made of high quality engineering plastic, good in appearance and convenient boltless lock-structure, easy for installation.
Material:
1. Body body material : PP
2. Inner plastic material is PP
3. Metal part: All are stainless steel
Model NO. | GWDB-8-01 |
Size(mm) | 195mm×230mm×75mm |
Gross Weight(kgs) | 2-2.5 kgs |
NO of Cable Entry | 3in (φ9mm) |
NO of Drop Cable | 8pcs of 2*3 mm soft cable or φ5mm round cable |
Adaptor | 8pcs of SC/APC |
Splitter | 1*8 Mini type splitter SC/APC G657A2 Fiber length Input 1.5m, output 1m with number labeling tube Insert loss ＜10.2 dB , Return loss＞55dB |
Splice Tray | Integrated in the turn-over plate |
Max Capacity | 8F |
IP | IP65 |
Installation Method | For both wall-mounting and Pole-mounting |
