OT1500E series is a 1550nm external modulation optical transmitter with high performance price ratio. It adopts low-cost single fiber output LiNbO3 external modulator, which is the preferred product for medium and short distance transmission and large area covered secondary network. It is applied to: the optical modulation and optical insertion of large and medium-sized 1550nm optical transmission system; the upgrading and expansion of WDM and its related networks. It is the core equipment of 1550nm network transmission system to for triple-play and FTTx.

Product Description

1.It adopts low-noise DFB laser as signal source, and high linear LiNbO3 external modulator as external signal modulation.

2.The perfect pre-distortion circuit ensures perfect performance of CTB and CSO in high standard CNR value.

3.Advanced SBS dual band suppression circuit, SBS continuously adjustable, adjustment range: 13~19for different distance networks.

4.Automatic gain (AGC) control enables stable output in different RF input levels.

5. Different networks can be optimized by OMI adjustment.

6.Fully automatic case temperature control, intelligent fans, the fans starts to work when case temperature reaches 30 ℃.

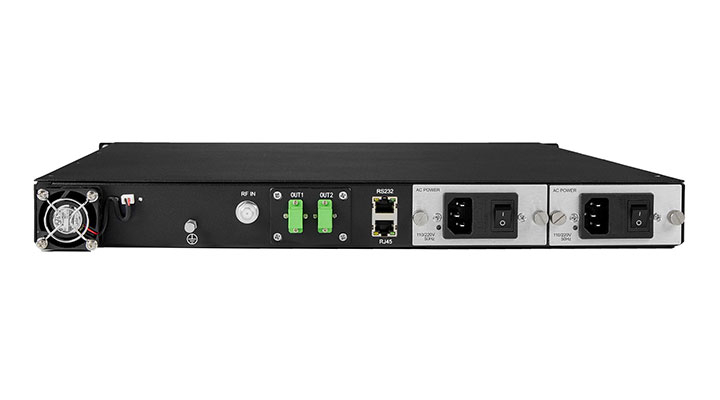

7. Built -in dual standby power supply, hot plug in/out and automatic switching supported.

8. The operating parameters of the whole machine are controlled by microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.

9. Standard RJ45 interface provided, supporting remote network management of SNMP and web, and remote adjustment of AGC, SBS, OMI and other functions.
