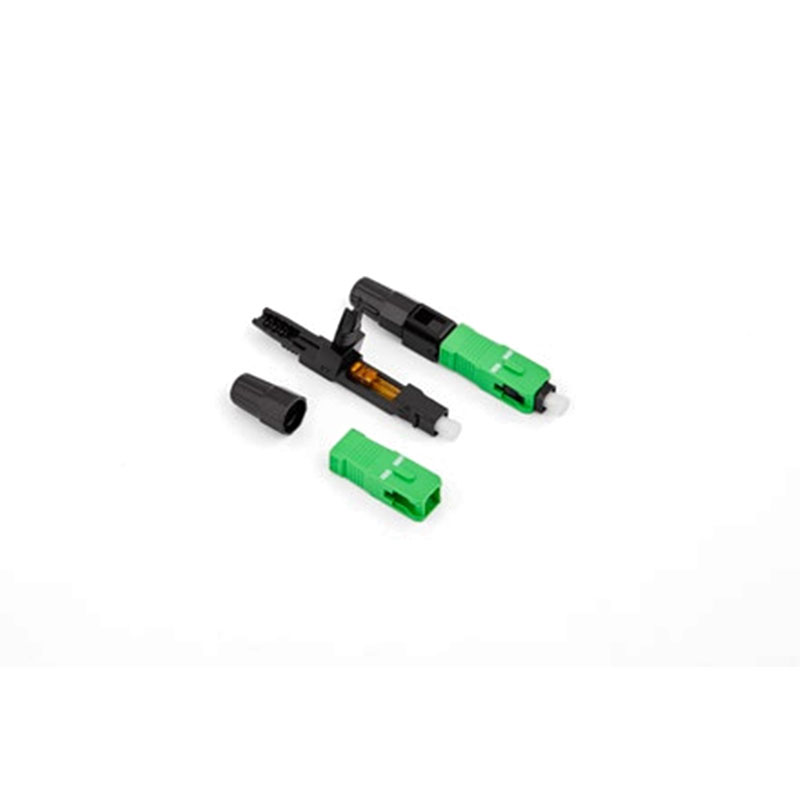

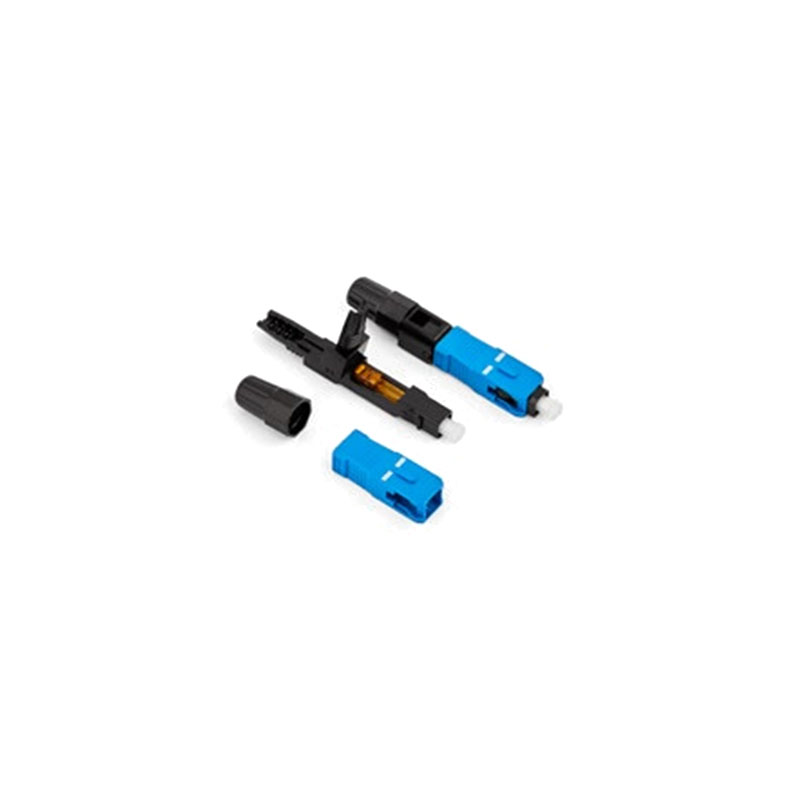

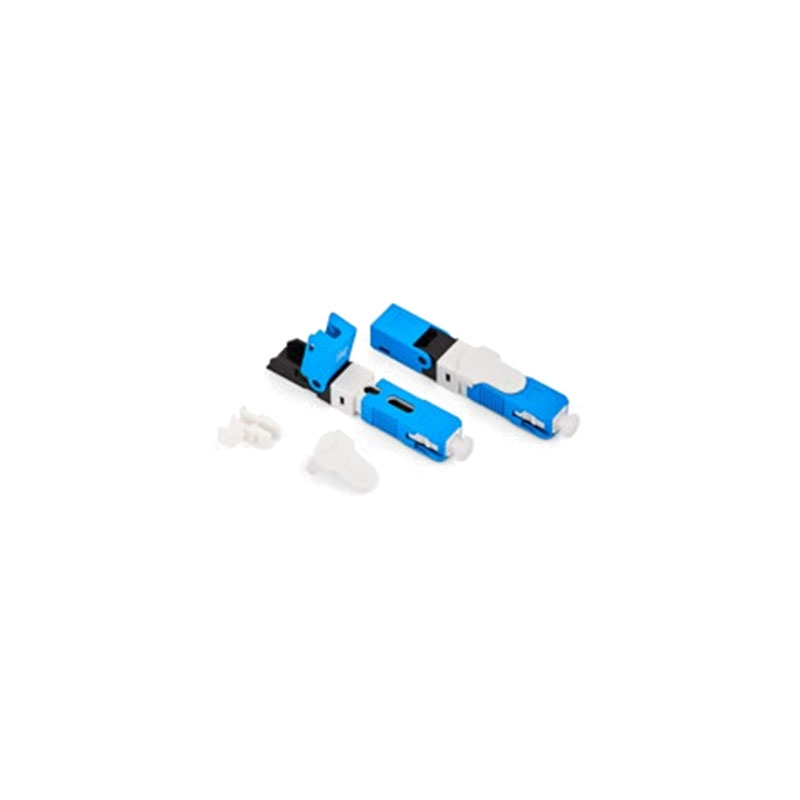

APC UPC Fast Connector
Features:
- No special tools needed when installed
- Without any gluing and polishing process
- Can be made on-site without splicing connectors
- Only 30 seconds needed to learn the process of installation
- Good high temperature performance and good sealing
- Easy installation, quick and fast in the assembly field
- High return loss and low insertion loss
Application:
- Distribution Frames & Patch Panels
- Fiber Optic Patch Cord & Pigtail
- Telecommunication Networks
- Data Processing Networks
- FTTH (Fiber To The Home)
- Local Area Network (LAN)
- Test Equipment.
- CATV & CCTV
Specification:
| Application scope | 3.1 x 2.0 mm butterfly optical cable |
| Assembly times | 10 |
| Fiber diameter | 125μm ( 657A & 657B ) |
| Bare fiber tightening force | 1.5 N |
| Tight cladding diameter | 250μm & 900μm |
| Tight cladding clamp force | 8 N |
| Application model | Single mode |
| Tensile strength | 50 N |
| Operation time | 15s (exclude fiber cut) |
| Operating temperature | - 40～+85℃ |
| Insertion | Maximum≤0.5DB, Mean≤0.3DB |
| Online stretching resistance test (30 N) | △IL ≤ 0.3dB |
| Return loss | UPC≥50DB， APC≥55DB |
| Mechanical permanence (500 times) | △IL ≤ 0.3dB |
| Success rate | 98% |
Drop test(4m high concrete floor/each direction one time, total three times) | △ IL ≤ 0.3dB |
