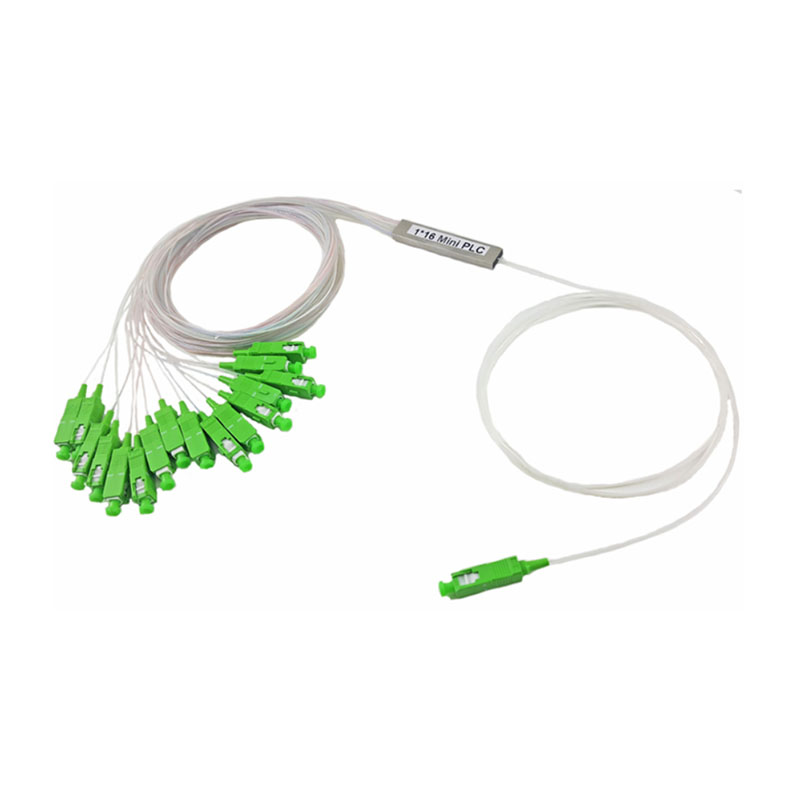

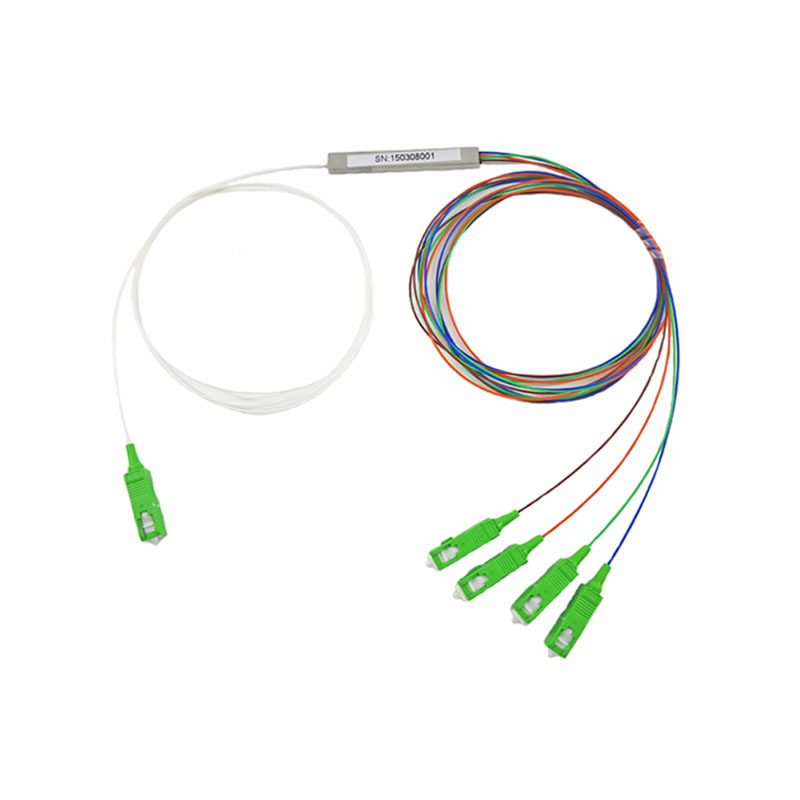

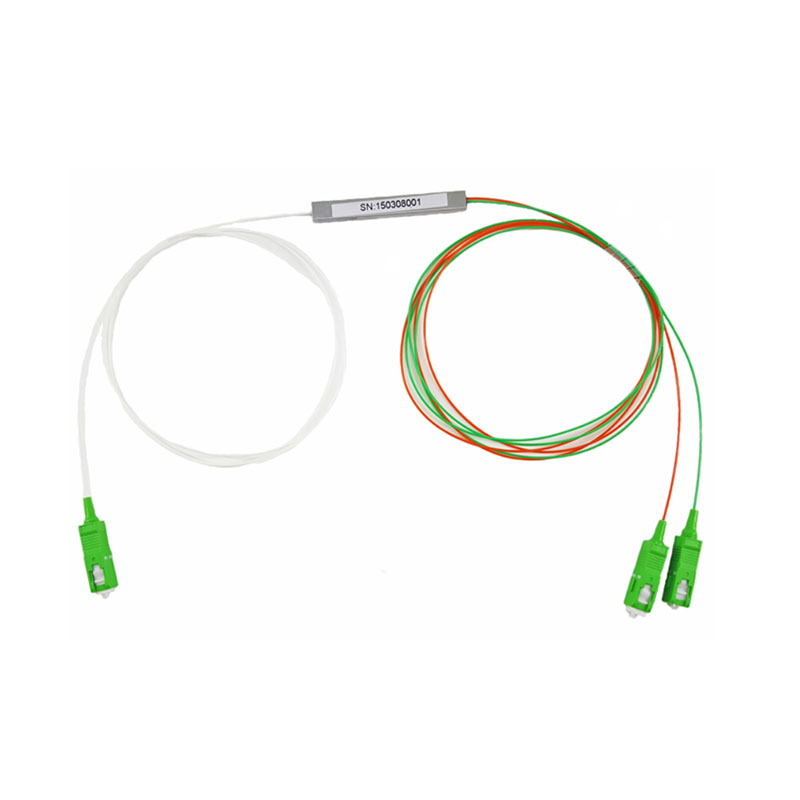

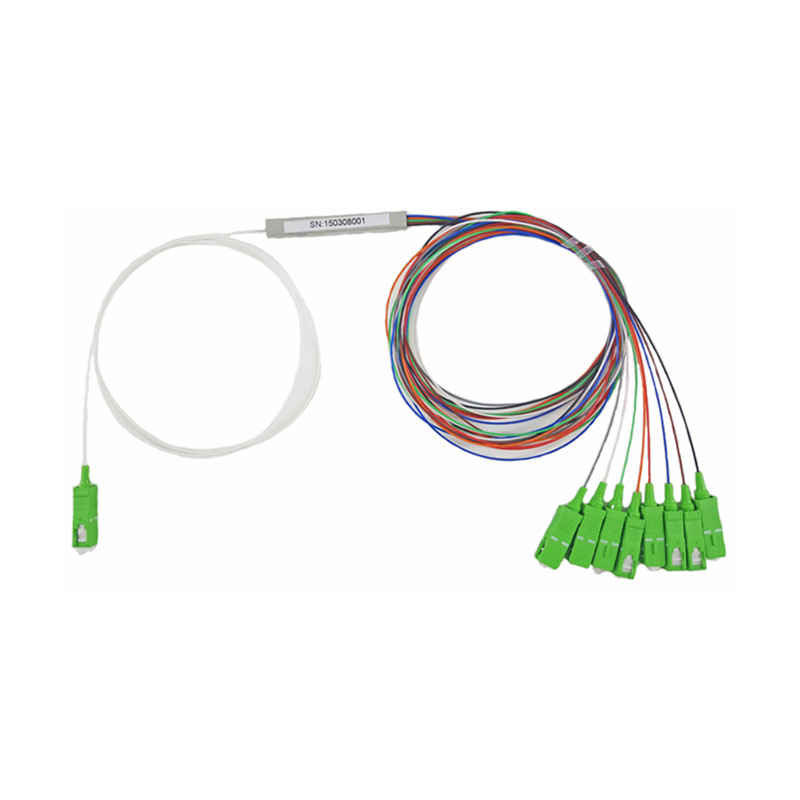

Mini Type PLC Splitter
PLC Splitter is a type of optical power management device that is fabricated using silica waveguide technology. We provides whole series of 1xN splitter products that are tailored for specific applications.
Features:
* Low Insertion loss
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -40 ° C to 85 ° C
* High Reliability and Stability
Mechnical Specification 1xN Splitters:
Parameter | Unit | Value | ||||||||||
Product Type | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | 1x16 | 1x32 | 1x64 | 1x128 | ||
Operating Wavelength | nm | 1260~1650 | ||||||||||
Insertion Loss | Typ. | dB | 3.6 | 6.3 | 7.0 | 9.4 | 10.2 | 12.4 | 13.5 | 16.6 | 20.1 | 24.5 |
Max. | dB | 4.1 | 6.8 | 7.5 | 10.0 | 10.5 | 13 | 13.8 | 17.1 | 20.8 | 25.3 | |
Uniformity (Max.) | dB | 0.5 | 0.8 | 0.8 | 0.8 | 0.8 | 1.2 | 1.4 | 1.5 | 2.0 | 2.6 | |
PDL(Max.) | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
Return Loss | dB | ≥55(APC type connectors) / 50(UPC type connectors | ) | |||||||||
Directivity | dB | ≥55 | ||||||||||
Operating & Storage Temp. | ℃ | -40～+85 | ||||||||||
