DVB-T Modulator

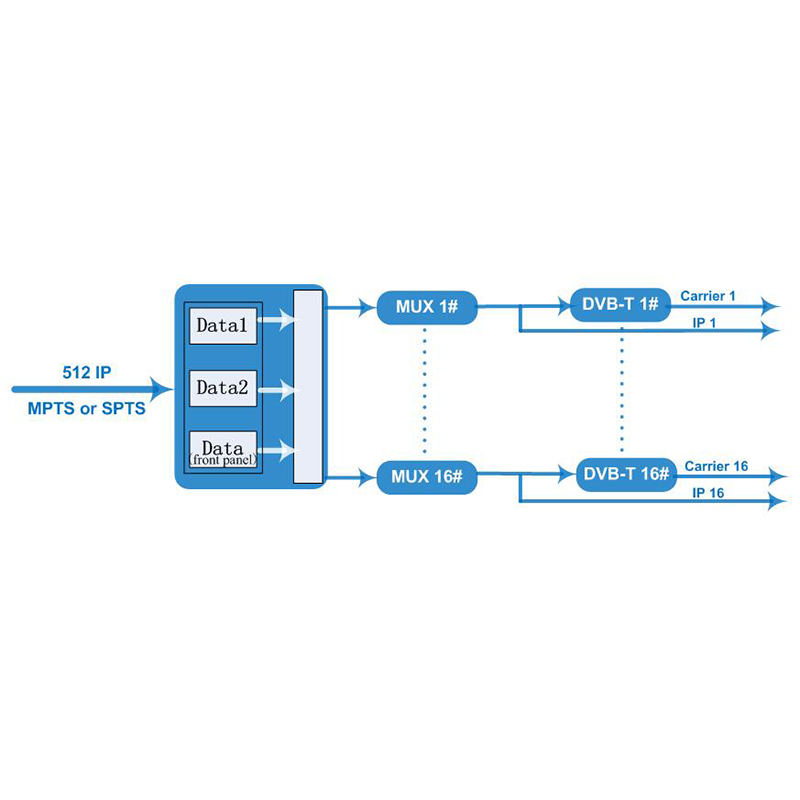

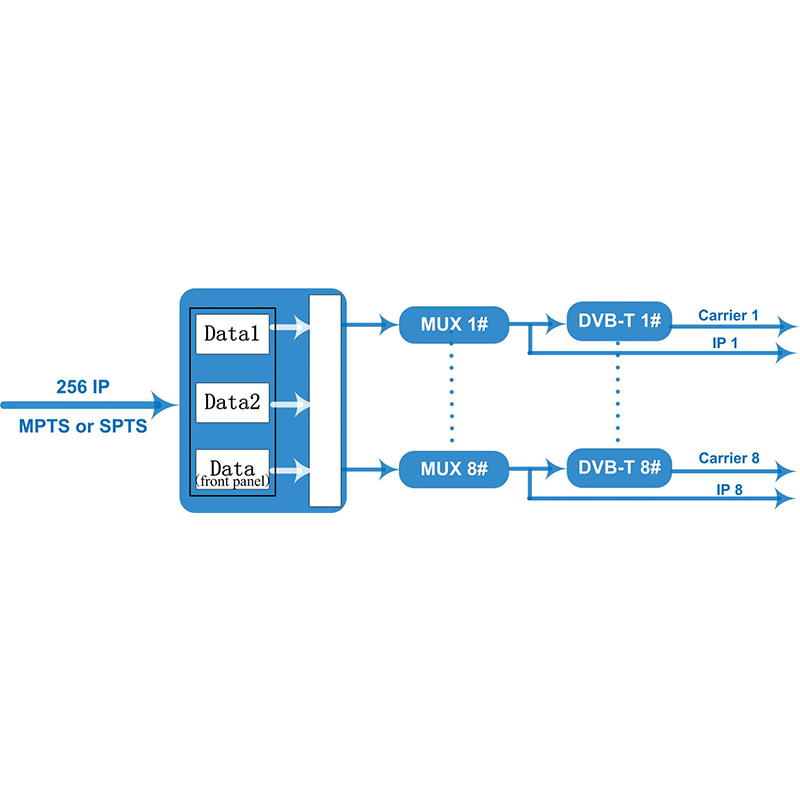

GW-DH3308T 8 in 1 (or 16 in 1) DVB-T modulator is an all-in-one device developed by Granwinning. It supports maximum 256 (or 512) IP input through the GE/SFP port and has 8 (or 16) multiplexing channels and 8 (or 16) DVB-T modulating channels of non-adjacent carriers (50MHz~960MHz). The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
* 3 GE ports (max 256 IP in):
Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out (for 8 dvb-t out verison)
Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out (for 16 dvb-t out verison)
Data port (located on front panel), max 128 IP in
* Max 840Mbps for each input
* Supports accurate PCR adjusting
* Supports PID remapping and PSI/SI editing
* Supports up to 180 PIDs remapping per channel
* Support 8 (or 16) multiplexed TS over UDP/RTP/RTSP output
* 8 (or 16) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
* Supports RS (204,188) encoding
* Support Web-based Network managementProduct Overview
